Looking Forward: Fiber Optic Data Transfer Technology

Were you aware that one hair-thin fiber can transmit more than 100 Tbps of information each second? That capacity could handle streaming 12 million HD films at once—a leap from the 1950s, when scientists first harnessed light to send basic signals.

• Data transmission rates 100x faster than old copper lines
• No disruption from electrical or radio noise
• Capacity to support 5G networks and 8K streaming

Characteristic	Copper Cables	Fiber Optic Cables
Data Rate	Up to 10 Gbps	Exceeding 100 Tbps
Distance	100 meters	70+ kilometers
Privacy	Easily tapped	Extremely hard to intercept

Light pulses bounce through glass cores using total internal reflection, similar to a laser light bouncing in a mirrored corridor. This physics trick prevents signal loss, even over continental distances. As video calls and smart devices multiply, these cables keep networks from collapsing under data weight – Fiber coloring machine.

Evolution of Fiber Optic Communication Technology

Years of research turned the concept of optical data transmission into a working technology. Researchers in the 1950s discovered that glass strands could guide light—an idea that revolutionized today’s communications.

Pioneers and Initial Trials

Narinder Singh Kapany made history in 1952 by proving light could travel through bent glass. He named the field “fiber optics,” establishing the basis for modern fiber networks. Alongside Harold Hopkins, he developed flexible imaging bundles that later inspired data transmission methods.

By the 1960s, laboratory trials showed these fibers had real-world applications. Although initial implementations suffered loss, ongoing experiments improved their efficiency. Researchers found that ultra-purified glass cores extend signal reach with minimal distortion.

Milestones in Fiber Development

In the 1970s, the first commercial deployments revolutionized the industry. Telephone companies adopted cables that replaced copper lines, boosting call clarity and capacity. In 1970, Corning Glass Works introduced low-attenuation fiber capable of 65 km spans.

Year	Achievement	Significance
1977	Initial live telephone transmissions	Proved real-world reliability
1988	Transatlantic cable TAT-8	Linked Europe and North America
1990s	Introduction of erbium-doped fiber amplifiers	Allowed extensive long-haul connections

Modern advancements focus on speed and scalability. Dense wavelength-division multiplexing (DWDM) now lets single strands carry multiple data streams simultaneously. Such progress connects laboratory research to worldwide network infrastructures.

Fundamentals of Fiber Optic Communication Technology

Given light’s unmatched speed, it’s a perfect medium for data transmission. This straightforward concept underpins contemporary networks. Rather than electrons in metal cables, photons traverse geographic barriers. Below is the fundamental mechanism.

Photons vs. Electrons: Why Light Wins

Light pulses carry information more efficiently than electricity. Light particles:

• Travel at ~186,000 mi/s (~99.7% of c)
• Don’t create heat or electromagnetic interference
• Can carry multiple signals at once using different wavelengths

Criterion	Electron Signaling (Copper)	Photon Signaling (Fiber)
Data Rate	Max ~10 Gbps	100+ Tbps
Noise Susceptibility	Affected by power lines	Immune
Energy Use	High	Low

The Mirror Effect Inside Glass Strands

Photons remain confined within the fiber’s core by total internal reflection. Because the core’s refractive index exceeds that of the cladding. Upon striking the boundary at a critical angle, it reflects internally, traveling long distances.

Such a design minimizes attenuation. Even over long distances, 95% of the original light reaches its destination. Combined with laser precision, it ensures your video calls stay crisp and your downloads finish fast.

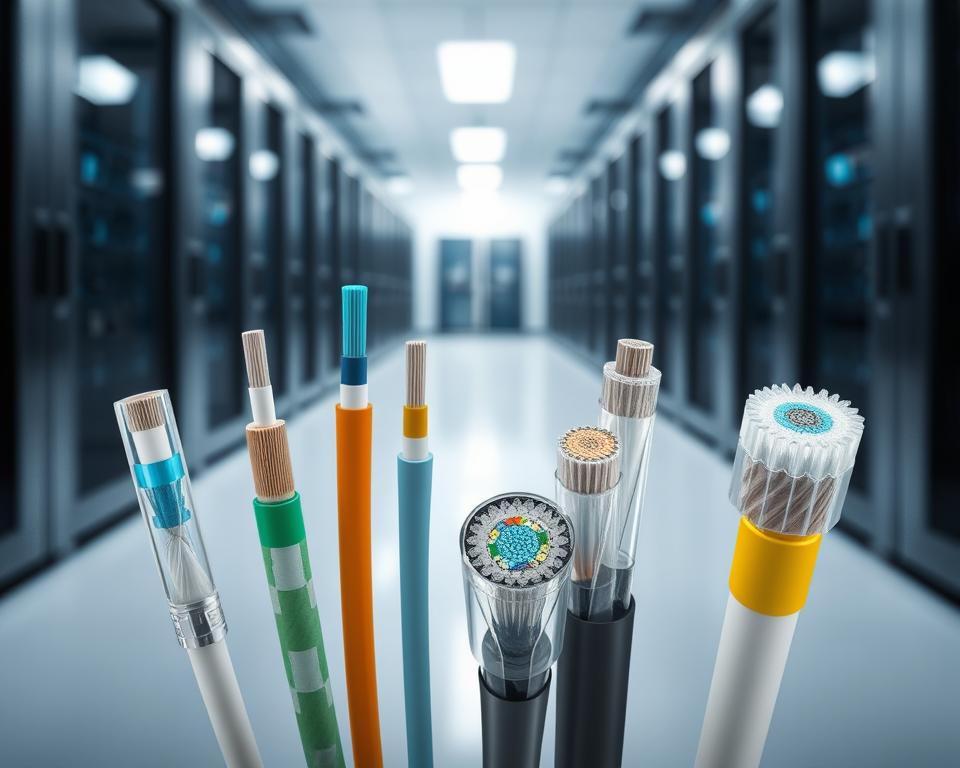

Different Types of Fiber Optic Cables

Fibers come in diverse designs. The right cable type depends on how far your data needs to travel and how much information you’re sending. Let’s break down the two main categories and their specialized designs.

Attribute	SMF	Multi-Mode
Core Size	9 µm	~50–62.5 microns
Throughput	100+ GHz	35–500 MHz
Max Distance	~120 mi	~1,600 ft
Common Uses	Long-haul telephony	Data centers

Hospitals use single-mode for MRI image transfers between buildings. Schools often pick multi-mode for classroom networks—it handles video streams without breaking budgets. Each cable category maintains connectivity, tailored to specific needs.

Anatomy of Fiber Optic Cables

Curious how connectivity persists despite storms? This is due to advanced cable engineering. These high-tech threads use multiple layers to protect data while traveling at light speed.

Core, Cladding, and Coating Layers

Each fiber’s core is ultra-thin, even narrower than human hair. This ultra-pure strand carries light signals using total internal reflection. Surrounding it, the cladding layer acts like a mirror, bouncing stray photons back into the core.

A protective acrylate coating wraps these layers. This 250-micron shield prevents scratches and moisture damage. Together, these components form the light-carrying highway inside every optical fiber.

Strengthening Fibers and Protective Jackets

Kevlar® reinforces the coated core, ensuring tensile strength. Aramid strands handle pulling forces to avoid fiber breakage. A PE jacket atop resists environmental hazards, chemicals, and rodent gnawing.

Layer	Material	Role
Central Glass	Pure silica glass	Light transmission
Cladding	Doped silica	Signal containment
Coating	Acrylate polymer	Physical protection
Jacket	Polyethylene	Environmental shield

Jacket colors indicate type: orange for multi-mode, yellow for single-mode. This simple system helps technicians quickly identify cable types during installations or repairs.

Working Principles Behind Data Transmission

How does information travel at light speed without getting lost It involves converting electrical pulses into controlled optical bursts. Flashes map bits (1s) and dark intervals (0s), forming an optical binary stream deciphered by lasers.

Optical Signaling Mechanics

Lasers emit ~500 million pulses/sec through fiber cores. By using QAM-16, four bits encode per pulse, multiplying throughput – Fibers in stainless steel tube. This photon dance happens with near-zero electromagnetic interference, unlike older copper-based systems.

Handling Signal Dispersion and Attenuation

Two main challenges disrupt flawless transmission:

• Wavelength dispersion: Different light colors (wavelengths) arrive at varying speeds.
• Mode dispersion: Light paths scatter in multi-core cables.

Today’s fibers address these with these solutions:

Solution	Outcome	Gain
Doped glass cores	Equalizes propagation speeds	40% less signal spread
DSP units	Real-time error correction	>99.999% fidelity

Signal loss drops to 0.15 dB/km in premium cables—a 92% reduction from early designs. Paired with EMI-resistant layers, they preserve signal fidelity worldwide. Consequently, transoceanic calls remain sharp despite severe weather.

Advanced Concepts in Optical Fiber Networking

What keeps your video calls from freezing during a storm The answer lies in specialized connectors and precision installation methods that form the backbone of modern networks. Such gear guarantees uninterrupted data transfer regionally and globally.

Fiber Termination & Splicing Methods

Network reliability starts with proper connections. SC connectors snap into place with push-pull ease, while LC types save space in crowded server racks. MPO/MTP designs handle multiple strands at once—perfect for data centers moving massive files.

Splicing primarily uses two approaches:

• Fusion splicing: Melts glass ends together for near-zero signal loss.
• Mechanical jointing: Uses alignment sleeves for fast, reusable splices.

Connector Type	Best For	Insertion Loss
SC	Commercial infrastructures	0.25 dB
LC	High-density devices	~0.20 dB
MPO	Data center interconnects	~0.35 dB

Contemporary Network Architectures

Modern designs require adaptable deployment methods. Micro-ducts let technicians blow cables through underground pipes, while armored designs withstand harsh outdoor conditions. In smart cities, fibers weave through traffic lights and security cameras, creating responsive urban networks.

Telecom operators roll out hybrid assemblies, merging electrical and optical conductors. This approach supports 5G towers and IoT devices simultaneously, proving that smart design keeps pace with our connected world.

High-Speed Data Transmission and Bandwidth Benefits

Imagine data as water in pipes: larger pipes yield greater flow. This bandwidth concept explains why modern networks need glass-based systems. While copper resembles a garden hose, fiber performs like a high-capacity firehose.

• Light signals traveling at 186,000 miles per second
• Many channels by WDM
• FEC slashes retransmissions by ~80%

Decade	Peak Throughput	Price per Gigabyte
1980s	45 Mbps	Approximately \$1,200
2000s	~10 Gbps	$0.12
2020s	178 Tbps	~\$0.0004

Bandwidth directly impacts what we can do online. Videoconferencing needs 5 Mbps per user, while VR demands 50 Mbps. NEC’s 2023 analysis found fiber nets serve ~40× more subscribers than copper at ~50% lower power consumption.

“Every dollar invested in high-capacity networks yields $3.80 in economic growth through improved productivity.”| “Each \$1 poured into high-bandwidth infrastructure returns \$3.80 in productivity gains.”

Enhanced performance trims OPEX. Signals travel 60 miles without repeaters versus copper’s 3,000-foot limit. Such efficiency powers 8K UHD, live AI tasks, and uninterrupted cloud sync at modest subscription fees.

Overcoming Interference and Signal Loss in Fiber Systems

Have you experienced static-laden calls in storms? Copper wiring falters when EMI spikes. But glass-based systems laugh it off. By leveraging photons rather than electrons, they eliminate interference from electricity or RF sources.

Built-In Noise Cancellation

While copper acts as an antenna, fiber is non-conductive. Hence, optical networks remain unaffected by external interference. A 2023 study found 92% fewer data errors in industrial settings when using light-based systems compared to older methods – Fiber draw tower.

Mitigation of loss relies on:

• High-purity cores minimize photon scattering
• Precision laser alignment minimizes power waste
• Protective coatings prevent moisture damage

Metric	Copper	Fiber
Interference Risk	Significant	Negligible
Attenuation per Mile	3 dB	0.2 dB
Service Frequency	~Monthly upkeep	Annual inspections

“Our factory’s error rates dropped 80% after switching to light-based networks—no more machine downtime from radio interference.”| “After switching to fiber, error rates fell by 80%, eliminating downtime from RF noise.”

Fiber excels in harsh environments. Subsea installations withstand saltwater corrosion, while desert networks endure sandstorms without signal degradation. With 99.995% uptime ratings, they’ve become the backbone of mission-critical systems worldwide.

Fiber’s Role in Telecom & Internet Services

How does your Netflix show arrive instantly from across the globe Fiber networks serve as the neural pathways of today’s Internet. They enable streaming, financial transactions, and more, using light to span oceans and landmasses.

Long-Distance & Metropolitan Fiber Deployment

Transcontinental cables stretch over 750,000 miles under oceans, carrying 99% of global internet traffic. Urban rings use these fibers to connect cell sites and corporate hubs. Transmitters convert electrical signals to light pulses, while receivers decode them at destinations.

Feature	Copper Networks	Glass-Based Networks
Throughput	~1 Gbps	~100 Tbps
Lag	~5 ms per km	~0.005 ms per km
Reliability	99.9%	~99.995%

Application in Data Centers and Cable TV

Data centers rely on these cables for inter-rack communication, moving petabytes daily. Cable providers deliver 4K content through hybrid fiber-coaxial systems. After Verizon’s 2023 fiber rollout, buffering issues dropped by ~73%.

Economic incentives accelerate uptake:

• 60% lower maintenance costs than copper
• Easily scalable for 5G traffic
• 40% energy savings per data unit

From Manhattan’s financial district to Pacific submarine routes, these communication systems prove that speed and reliability can coexist. In the words of an engineer: “Nothing outpaces light when transferring vast datasets.”

Next-Generation Fiber Innovations

What if your internet could handle 8 billion video calls at once. That’s the promise of next-gen innovations reshaping how we move information. Advanced transceivers and modulation schemes drive network evolution.

Next-Gen Transmitters & Detectors

Modern lasers now fire 200 wavelengths simultaneously—up from just 40 a decade ago. They deliver ~5× the output at ~30% reduced consumption. Combined with graphene-based photoreceivers, they detect even minimal photon levels.

Major innovations encompass:

• Narrow-linewidth lasers reducing noise by 90%
• Photonics-integrated circuits shrinking hardware size
• AI-driven calibration maintaining peak performance

Coherent Optics & Multiplexing

Coherent systems treat light like radio waves, encoding data in its phase and amplitude. Such techniques increase throughput ~16× over basic on-off keying. When combined with wavelength-division multiplexing (WDM), single strands carry 800+ data streams.

Technique	Channels	Capacity
DWDM	~160	80 Tbps
OFDM	512	120 Tbps
SDM	Multi-core	1 Pbps*

*Experimental (NTT, 2023)

Such approaches mesh with current networks with minimal overhaul. Verizon’s 2024 upgrade used coherent tech to double network capacity without laying new cables. As one engineer noted: “We’re teaching old cables new tricks—the best is yet to come.”

Worldwide Fiber Standards & Guidelines

How do international calls remain glitch-free? Universal protocols guarantee seamless interoperability across diverse systems. Absent these specs, infrastructure would face mismatches and inefficiencies.

Standard	Focus Area	Impact
ITU G.652	Single-mode fiber	Enables 100Gbps+ speeds
IEC 60793-2-50	Mechanical reliability	Certifies two-decade service life
ITU G.654	Undersea fiber	Prevents saltwater corrosion

Testing & Quality Benchmarks

Consistent testing keeps networks running smoothly. Key benchmarks include signal loss (under 0.25 dB/km) and tensile strength (minimum 50 Newtons). Vendors conduct over 200 quality tests, including thermal and bend stress trials.

“Our compliance with IEC 61300-3-35 reduced installation errors by 65% last year.”| “Adhering to IEC 61300-3-35 led to a 65% drop in deployment mistakes.”

Verified components and accurate technical data prevent costly mistakes. Installers use standardized color codes and termination methods, creating seamless connections between equipment from different vendors. This harmony keeps global data flowing without hiccups.

Real-World Fiber Deployment Examples

How can metropolises support massive concurrent streaming demands? Actual projects illustrate how strategic design and robust fibers sustain our digital ecosystem. Below are two landmark implementations that transformed worldwide networking.

City Fiber Rollouts & Metropolitan Backbones

New York City’s Metro Fiber project tackled a major challenge: aging copper lines causing 40% slower speeds in business districts. They laid 800 mi of micro-trenched fiber beneath sidewalks, steering clear of subways and utilities. Outcomes: Latency fell from ~14 ms to ~2 ms; throughput increased by ~600%.

Issue	Approach	Result
Subsoil crowding	3D GIS route planning	92% faster installation
Signal interference	Armored multi-core cables	~99.99% reliability
Funding limits	PPP funding model	30% cost reduction

Subsea and Transcontinental Examples

The MAREA cable—stretching 4,000 miles between Virginia and Spain—handles 160 Tbps across eight fiber pairs. Installation crews faced 10,000-foot depths and shark bites, using robotic subs to bury strands in seabed sediment. This $160 million project now carries 55% of Europe-North America traffic.

“Subsea systems require 200+ design revisions before deployment. Every meter matters when you’re laying cable across tectonic plates.”| “Over 200 design iterations are typical for undersea cables. Small changes hugely impact viability across plates.”

Key differences between deployment types:

• Urban projects use bend-resistant cables for tight corners
• Subsea systems require titanium-reinforced sheathing
• Isolated sites rely on solar-driven amplifier stations

Both approaches prove that strategic design and durable materials can transform how we move data. Spanning city high-rises to sea depths, fiber underpins today’s digital existence.

Economic Impact and Scalability of Fiber Networks

What fuels today’s streaming surge and telecommuting trend? The answer lies in networks that combine upfront investment with long-term savings. While initial deployment costs can reach \$60,000 per mile, these systems deliver unmatched value over decades of service.

Strategic Investment for Scalability

Upgrading to advanced networks cuts operational costs by 40% compared to copper systems. Maintenance expenses drop sharply—no more replacing corroded wires or fighting electromagnetic interference. A 2024 study showed:

Expense Category	Legacy Systems	Modern Networks
Installation	\$45/meter	~\$28/m
Energy Use	5W per device	1.2W per device
Service Calls	12/year	2/year

Worldwide spending reflects this transition. Telecom giants plan to spend \$150 billion through 2027 expanding infrastructure. Urban projects now achieve 300% ROI within five years through increased productivity and reduced downtime.

Navigating Deployment Hurdles

Yet municipalities encounter three primary obstacles:

• Permitting delays adding 18 months to timelines
• Scarcity of skilled fiber technicians
• Community pushback against trenching

“Our Phoenix deployment took 22 months instead of 14 due to permit bottlenecks. Still, the network boosted local GDP by \$380 million annually.”| “Phoenix’s build required ~22 months, not 14, over permit delays—but delivered ~\$380M/year in GDP uplift.”

Novel remedies appear. Micro-trenches cut surface impact by ~80%; PPP models distribute funding risks. These approaches help communities harness the power of scalable, future-ready systems without breaking budgets.

Cutting-Edge Fiber & Future Outlook

Fiber backbones are receiving performance upgrades. Researchers now push boundaries with materials thinner than spider silk and signaling methods that outpace traditional designs. Such progress aims to reduce latency and accommodate future data surges.

Next-Generation Fiber Technologies

MIT’s 2024 experiments suggest hollow-core fibers (air-filled) may cut latency ~30%. These tubes guide light through vacuum-like channels, reducing signal drag. Parallel multi-core fibers embed seven channels in one sheath, boosting throughput ~4×.

Metric	Today’s Specs	2027 Projection
Throughput	~100 Tbps	1.2 Pbps
Reach	70 km	150 km
Power Demand	0.5 W/device	~0.15 W/device

Emerging WDM packs ~400 channels per fiber, versus ~160 currently. This “spectral supercharging” lets networks handle 8K virtual reality streams without breaking stride.

Integration with 5G and Beyond

6G networks will lean heavily on upgraded cables to support millimeter-wave frequencies. Trials in Dallas show hybrid systems delivering 10 Gbps wireless speeds when paired with high-capacity backbones.

• Small cell sites in 5G require fiber connections ~500 ft apart
• Satellite-ground stations require low-latency connections
• Smart factories use real-time data flows for robotic precision

Nokia’s 2023 report says advanced fiber cuts 5G round-trip delay by ~82%. As one engineer noted: “Wireless needs wired bones—the faster the backbone, the smoother the airwaves.”

Wrapping It Up

The invisible threads connecting our digital world keep getting stronger. Over decades, advancements in materials and engineering transformed how we exchange information—from copper’s limitations to light-speed possibilities. Modern fiber infrastructures show that higher speeds are critical for video streaming, telemedicine, and trading systems.

Today’s networks succeed due to clever engineering. Plastic-based protective layers shield delicate glass cores, while global standards ensure seamless compatibility. Such features cut power consumption ~40% versus legacy tech, rendering ultrafast access eco-friendly and expandable.

Obstacles persist—deployment expenses and community engagement. Yet economic benefits outweigh hurdles—every $1 invested yields nearly $4 in growth. As 5G expands and AI demands real-time data, reliable infrastructure becomes non-negotiable.

Future endeavors will extend these frontiers. Hollow cores and advanced wavelength methods may render current rates outdated. One thing’s clear: the way we share knowledge will keep evolving, driven by humanity’s endless quest to connect faster, farther, and smarter.
