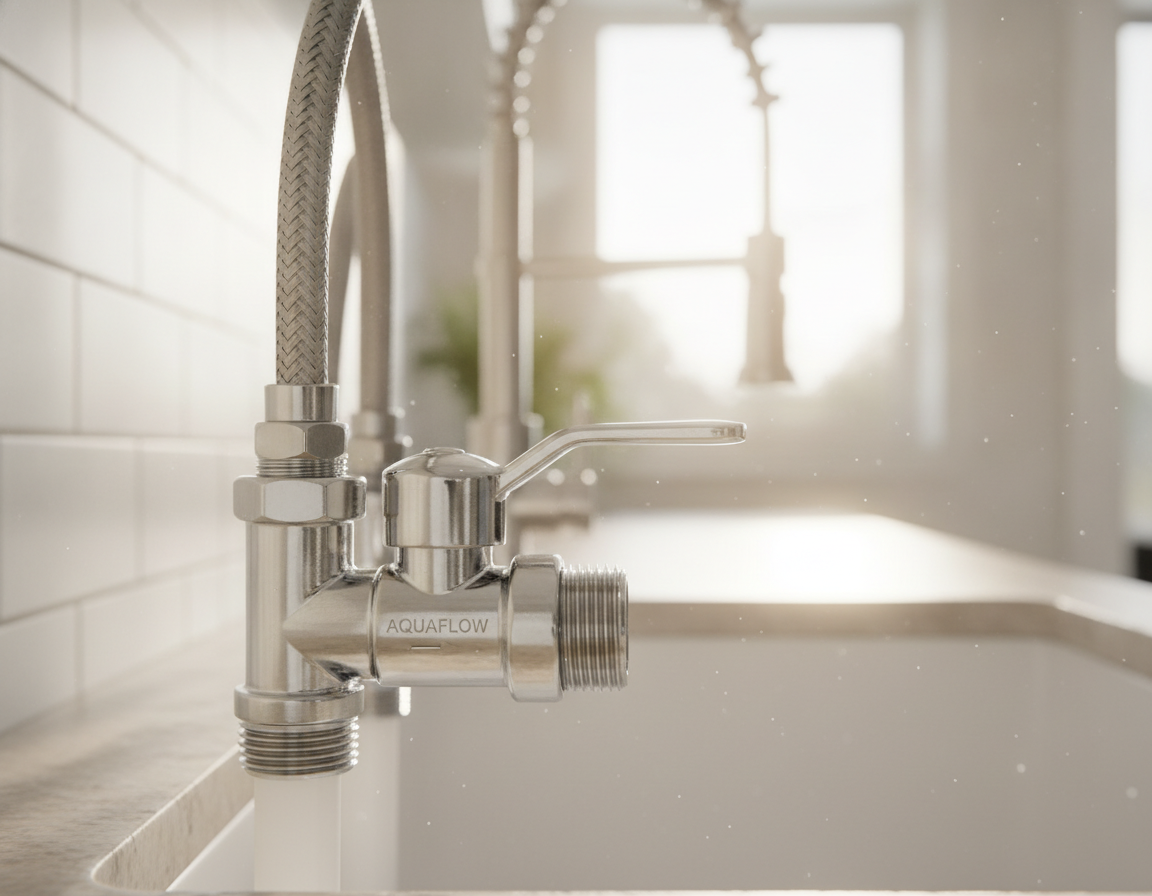

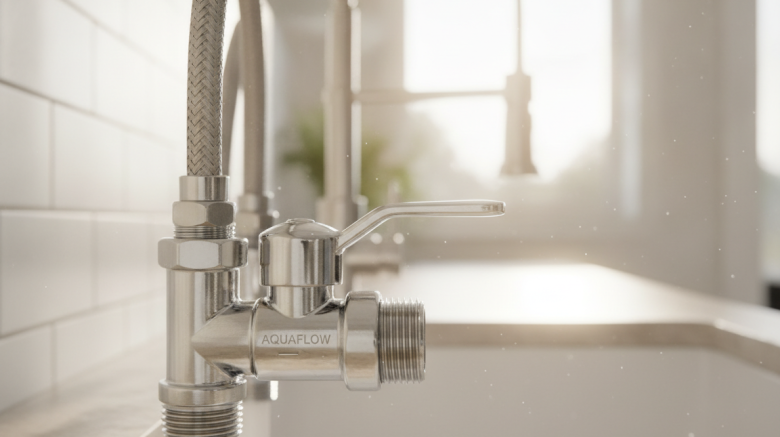

A compact angle stop is an L-shaped valve installed where the supply line connects with a fixture. You will find these valves under sinks, behind toilets, and at many appliance connections. A functioning Plumbing Angle Stop lets you isolate one fixture without shutting off the main supply. That means repairs can be completed more easily.
Angle Valve For Sink
In many homes, angle stops measure about 3–6 inches and redirect water at a 90-degree angle toward the fixture. Today’s installations often use quarter-turn, ball-style Angle Stop Valve models. They are quicker to operate and commonly provide longer service life. If an angle stop corrodes, leaks, or becomes stiff, replacing it helps prevent water damage and simplifies future maintenance.
Important Points
- A Plumbing Angle Stop allows a single fixture to be isolated while the rest of the home stays supplied.
- Angle Stops Plumbing are usually found beneath sinks, behind toilets, and near fixtures where quick access matters.
- An Angle Stop Valve typically measures 3–6 inches and turns water 90 degrees toward the fixture.
- Quarter-turn models are commonly preferred because they offer dependable performance.
- Any valve that corrodes should be replaced before it causes larger water problems.
What An Angle Stop Is And Why It Matters
The angle stop is a compact shutoff valve installed where a water line meets a fixture. It controls water to a single fixture so repairs, upgrades, or replacements can happen without closing the whole-house main. Homeowners, plumbers, and inspectors depend on these valves to keep maintenance manageable.
Angle Stop Definition Explained
An angle stop is a 90-degree valve placed at the fixture supply. Angle Stop Valves come in several styles, including older multi-turn stem designs and newer quarter-turn ball designs. The Plumbing Angle Stop fits neatly under sinks and behind toilets while saving space.
Common Angle Stop Locations In A Home
Plumbing Angle Stops are commonly found under kitchen and bathroom sinks. They sit at the back of cabinets where the supply line enters. Toilet stops mount on the wall behind the tank. Angle stops may also appear at appliance connections, including dishwashers, ice makers, washing machines, and some water-heater cold-supply lines.
Practical Benefits For Homeowners
A major advantage of an Angle Valve For Sink is fixture isolation. A working Plumbing Angle Stop lets you shut off one fixture to replace a faucet or repair a leak. This helps prevent minor leaks from becoming major water-damage events and keeps household disruption lower.
Another advantage is convenience. Angle Stops Plumbing are compact, helping reduce repair time and inconvenience. Periodic exercising of the valve keeps it operable. Upgrading old multi-turn stops to modern quarter-turn Angle Stop Valve models speeds emergency responses and lowers stress.
How An Angle Stop Differs From An Angle Seat Valve
Household angle stops serve low-pressure potable water lines. They are designed for sinks, toilets, and common appliances. The industrial Angle Seat Valve is different. It handles high-pressure, high-temperature, or corrosive media found in steam, chemical, and HVAC systems. Angle seat valves use pistons and durable metal seats for tough service, while an Angle Stop is a simpler fixture-level shutoff for residential plumbing.
Types Of Angle Stops And How To Choose One
Selecting the correct angle stop involves comparing materials, operating style, connection type, and extra features. This guide compares common options to help homeowners and plumbers choose a durable, code-compliant fixture shutoff.
Common Valve Materials
Brass is widely used as the standard material for Angle Stops. Because it resists corrosion and may last 10–20 years, brass is a strong choice for Quarter-Turn Angle Stops. Stainless steel bodies are useful in humid basements, coastal locations, and exposed areas where rust resistance matters. Plastic-bodied stops cost less but are less durable and may degrade in hot-water loops. For potable water lines in the United States, select a Lead-Free Angle Stop that meets applicable federal and state requirements.
Valve Operation Styles
Quarter-turn valves use a ball or disc and open with a 90-degree turn. They offer low turning force and better resistance to mineral buildup, which makes them useful for frequent operation and emergencies. Multi-turn valves rely on a rising stem and need several turns to open or close fully. They provide finer flow control but are more likely to leak or stick in older homes.
Common Connection Styles
Compression Angle Stop fittings use a nut and ferrule, making them common for copper and CPVC stub-outs. They are popular in remodels because they can be installed without soldering or open flame. Sweat Angle Stop joints are soldered for a slim, permanent seal and work well in tight spaces where a torch is acceptable. FIP-threaded valves attach to male adapters and usually require PTFE tape or pipe-thread sealant. Push-Fit Angle Stop products, including SharkBite-compatible models, slip onto copper, CPVC, or PEX for tool-free installs. Push-fit designs are handy for DIY jobs and cramped spaces, while Compression Angle Stop fittings are common where future removal or rework may be needed.
Special Features
Some Angle Stop Valve models include a Water Hammer Arrestor Angle Stop. These use a piston or air chamber to absorb shock from quick-closing fixtures and reduce noisy banging. In humid or coastal locations, a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems can improve service life. A Lead-Free Angle Stop marking on the body helps confirm the valve is intended for potable-water use. Choose a valve that matches the pipe material, connection type, and service conditions to reduce premature failure.
Plumbing Angle Stops
Plumbing angle stops control water flow to fixtures with a right-angle design. The choice of size and style affects both function and code compliance. Below, we cover common markings, placement, potable-water standards, and modern standardization trends.
Common Sizes And Reading Valve Markings
In homes, inlet fittings are usually 1/2 inch nominal, while fixture outlets are often 3/8 inch compression. Valve markings often appear as 1/2 x 3/8, 1/2” MIP x 3/8” OD, or similar size combinations. Those markings show which side connects to the supply pipe and which side connects to the fixture hose. Some valves are marked 3/8 COMP to indicate a compression outlet. Before buying, confirm that the inlet matches your supply piping, whether it is 1/2 FIP, 1/2 MIP, 1/2 sweat, or another style.
Typical Placement In The Home
Angle stops are commonly found under kitchen and bathroom sinks and behind toilets. Dedicated stops may also serve dishwashers, ice makers, washing machines, water heaters, and other appliances. Under-sink valves are commonly located at the rear of cabinets, while toilet stops are generally visible near the wall behind the tank.
Potable Water Code And Safety Notes
In the U.S., valves for drinking-water lines must meet lead-free standards for wetted surfaces. Choose a Lead-Free Angle Stop that has clear markings, documentation, or certification details. Contractors should follow local plumbing codes and provide the appropriate certifications, testing information, and warranty support.
Modern Trends And Recommended Standards
Modern Angle Stops commonly feature quarter-turn ball-style operation. The Quarter-Turn Angle Stop gives quick emergency shutoff and long life with brass construction. Many plumbers standardize on brass 1/2 x 3/8 angle stops for sinks and toilets because they simplify stocking, replacement, and maintenance. Models with arrestors and other potable-water protection features are increasingly common in new installations.
Selection Checklist For Angle Stops
- Confirm Valve Markings for inlet type and outlet size before purchase.
- Match the Angle Valve For Sink or toilet to supply hose fittings and tank threads.
- Specify a Lead-Free Angle Stop when the line serves potable water.
- Standardize on Quarter-Turn Angle Stop 1/2 x 3/8 units for easier repair and reliability.
Installing And Replacing Angle Stops: Tools, Steps, And Best Practices
When tackling a plumbing angle stop, it is important to know when to shut the main water supply. Only shut the main if the existing stop will not close fully, is damaged, or is frozen. For most replacements, you can isolate the line using the valve under the sink. Always open a downstream faucet to relieve pressure and keep towels and a bucket ready.
Before starting, gather all needed tools and supplies. You will need an adjustable wrench, backup wrench, tube cutter, and deburring tool. Emery cloth for copper, PTFE tape for threaded joints, a marker, and a flashlight are also useful. For push-fit installs, bring the manufacturer’s push-fit angle stop, a PEX stiffener, and spare ferrules and nuts for compression work. Penetrating oil and a heat shield help with stubborn fittings and sweat connections.
Checklist:
- Adjustable wrench plus backup wrench
- Clean-cutting and deburring tools
- PTFE tape plus marking pen
- Push-fit angle stop and PEX stiffener
- Replacement ferrules, compression nuts, penetrating oil, and towels
Follow specific steps for each connection type. For compression, slide the nut and ferrule onto the pipe, then seat the valve against the pipe shoulder. Start the nut by hand, then tighten another 1/4–1/2 turn with a wrench. Use a backup wrench on the valve body or outlet so the stub-out does not twist.
For push-fit installation, cut the pipe square and deburr it. Mark the insertion depth, then push the valve straight onto the pipe until it reaches the mark. After installation, give the fitting a light tug to confirm it has locked in place. Push-fit angle stop fittings work on copper, CPVC, and PEX; use a stiffener for PEX where required.
Sweat angle stop connections need careful preparation and heat control. Remove or protect nearby seals and internals, clean and flux the pipe and valve cup, heat the joint evenly, and solder. After cooling, wipe the joint to remove residue. Use a heat shield or remove seals to prevent damage during sweating.
For a FIP angle stop or other threaded connection, apply three to four wraps of PTFE tape to the male threads and start the valve by hand to prevent cross-threading. Tighten the valve until it is sealed and aligned, connect the supply line, and test with water slowly.
After installation, turn the water back on slowly while watching every joint. Open the angle stop and fixture gradually. Wipe joints to spot tiny weepers. Exercise the valve and recheck after pressure stabilizes to catch slow leaks.
Be aware of common mistakes that can lead to failures. Over-tightened compression nuts may deform ferrules and create leaks. Never reuse a damaged ferrule; cut back the pipe and install a new ferrule when needed. Do not solder near heat-sensitive seals unless they are protected or removed. Avoid twisting push-fit valves during insertion and always follow the manufacturer’s insertion-depth marks.
Common trouble points include a frozen or leaky stop that forces a main shutoff, misapplied PTFE tape that causes threaded leaks, and tightening outlet nuts without a backup wrench. Keep spare parts nearby and follow torque guidance for each valve type to reduce callbacks.
Common Problems And Quick Repairs For Angle Stops
Small leaks, stuck handles, and stiff valves are common angle stop problems for homeowners. A quick inspection can show whether the valve needs a minor repair or complete replacement for dependable service.
Leaking At The Stem Or Handle
In older multi-turn valves, seepage at the stem usually starts with a loose packing nut. Tightening the nut about 1/8 turn with an adjustable wrench can often solve the issue. If water still seeps, the internal washer, O-ring, or packing may be worn and the valve may need replacement.
Stuck Valves
Mineral Buildup, corrosion, and rust commonly cause stuck angle stops. Applying a penetrating product such as WD-40 for about ten minutes may help. A gentle back-and-forth motion may help break the handle free. If the valve stays frozen or the handle feels brittle, replacement is safer than forcing it and risking a flood.
Weeping Compression Joints
A persistent leak from a compression joint usually indicates a misaligned ferrule or damaged pipe end. To fix it, loosen the nut, reseat the ferrule, and clean the pipe with emery cloth. If the ferrule is damaged or worn, cut back the pipe, fit a new ferrule, and tighten carefully without over-compressing it.
When Replacement Makes Sense
Homes with frequent leaks, frozen handles, visible corrosion, or valves over ten years old should consider modern angle stops. A Quarter-Turn Upgrade to a ball-type stop improves shutoff speed, resists Mineral Buildup, and increases emergency reliability.
Fast Repair Checklist
- Tighten the packing nut slightly for stem drips.
- For stuck valves, apply Penetrating Oil and use gentle back-and-forth motion.
- For compression leaks, reseat the ferrule or cut back the pipe and install a new ferrule.
- When valves repeatedly freeze, leak, or stick, upgrade to quarter-turn stops.
Regularly exercising angle stops and checking for corrosion helps identify issues early. Fixing leaks, stuck valves, and weeping joints promptly helps prevent bigger repairs and supports Angle Stop Reliability.
Summary
The Plumbing Angle Stops Guide highlights the importance of these small but critical components. They let homeowners shut off one fixture without disrupting water to the whole house. Choosing the right material, operation style, and connection type makes repairs easier. It also reduces the risk of water damage during upgrades.
For best performance, the industry often recommends lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors are also useful where water hammer is a concern. Homeowners should test valves regularly and replace faulty Plumbing Angle Stops. Depending on valve type and job difficulty, parts may range from $6 to $60, while professional installation may cost $75 to $200.
If installation is uncertain, consulting a licensed plumber is wise. A qualified plumber can check code requirements, complete the work properly, and often provide warranty-backed service. That approach helps protect fixtures, reduce risk, and make future maintenance easier. It also supports current Angle Stops Plumbing best practices for today’s residential systems.
